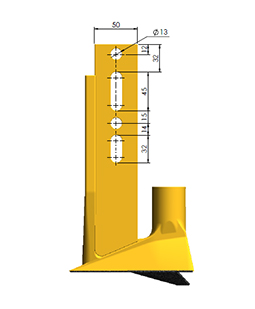

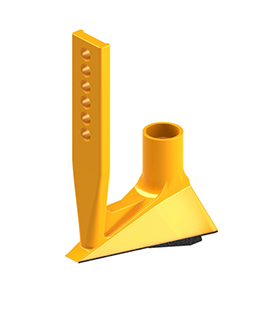

A-STILETO PARA WING
SSOL DIMENSIONS MAIN FEATURES
SSOL
DRAFT RENDER para-wing - SSOL-2 - dimension Stiletto Para Boot To fit the DBS and stiletto Para Boot to fit PSS (Primary Sales Seeder)

Advantages are all the usual Stiletto things like better seed placement and germination also the fact that there is no loss of seed to the bottom of the furrow due to the mouse holing effect caused by the standard seed closer plate .

Better yields are achieved, because the seed is sown into uncultivated soil the seed is sitting in moisture and not where the point has dried out the soil.

Also it has the ability to chase moisture.
DRAFT RENDER para-wing - SSOL-2 - dimension
Stiletto Para Boot To fit the DBS and stiletto Para Boot to fit PSS (Primary Sales Seeder)

Advantages are all the usual Stiletto things like better seed placement and germination also the fact that there is no loss of seed to the bottom of the furrow due to the mouse holing effect caused by the standard seed closer plate .

Better yields are achieved, because the seed is sown into uncultivated soil the seed is sitting in moisture and not where the point has dried out the soil.

Also it has the ability to chase moisture.

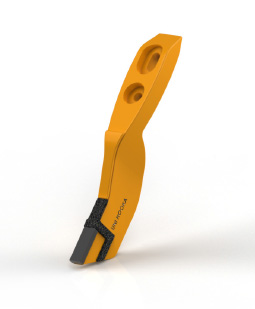

UNI HOOKA
UNIHOOKA DIMENSIONS MAIN FEATURES
UNIHOOKA
product_uni-hooka_unihooka product_uni-hooka_unihooka(dimensions) Our unique point that combines the easy pulling of a 45° point and the reduced throw of a 35° point together with the tapered mount results in even better trash clearance (especially in couch or similar grasses) and a more precise throw of soil in the use of chemicals such as Triflurilan / Boxer Gold.
  • Unrivalled trash clearance with its smooth lines and unique chamfer on top to prevent snagging.
  • Recommended for 350lb (still ok with 550lb)
  • break out machines.
  • 10 x 16 x 50 mm recessed tungsten carbide tile, backed up with overlay tungsten.
  • Fast replacement (rattle on and off).
  • Fits flat mount tyne machines such as Bourgault, Gason and Horwood Bagshaw.
product_uni-hooka_unihooka product_uni-hooka_unihooka(dimensions)
Our unique point that combines the easy pulling of a 45° point and the reduced throw of a 35° point together with the tapered mount results in even better trash clearance (especially in couch or similar grasses) and a more precise throw of soil in the use of chemicals such as Triflurilan / Boxer Gold.
  • Unrivalled trash clearance with its smooth lines and unique chamfer on top to prevent snagging.
  • Recommended for 350lb (still ok with 550lb)
  • break out machines.
  • 10 x 16 x 50 mm recessed tungsten carbide tile, backed up with overlay tungsten.
  • Fast replacement (rattle on and off).
  • Fits flat mount tyne machines such as Bourgault, Gason and Horwood Bagshaw.

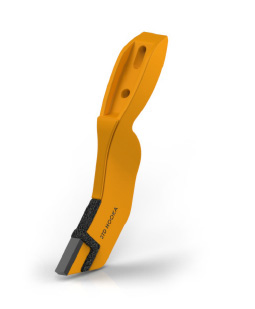

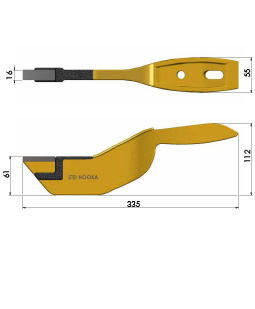

STANDARD HOOKA
STDHOOKA DIMENSIONS MAIN FEATURES
STDHOOKA
product_standard-hooka_stdhooka product_standard-hooka_stdhooka(dimensions) Our unique point that combines the easy pulling of a 45° point and the reduced throw of a 35° point together with the tapered mount results in even better trash clearance (especially in couch or similar grasses) and a more precise throw of soil in the use of chemicals such as Triflurilan / Boxer Gold.
  • Unrivalled trash clearance with its smooth lines and unique chamfer on top to prevent snagging.
  • Recommended for 350lb (still ok with 550lb) break out machines.
  • 10 x 16 x 50 mm recessed tungsten carbide tile, backed up with overlay tungsten.
  • Fast replacement (rattle on and off).
  • Fits all curved tyne bars - John Deere, Morris and Flexi-Coil.
product_standard-hooka_stdhooka product_standard-hooka_stdhooka(dimensions)
Our unique point that combines the easy pulling of a 45° point and the reduced throw of a 35° point together with the tapered mount results in even better trash clearance (especially in couch or similar grasses) and a more precise throw of soil in the use of chemicals such as Triflurilan / Boxer Gold.
  • Unrivalled trash clearance with its smooth lines and unique chamfer on top to prevent snagging.
  • Recommended for 350lb (still ok with 550lb) break out machines.
  • 10 x 16 x 50 mm recessed tungsten carbide tile, backed up with overlay tungsten.
  • Fast replacement (rattle on and off).
  • Fits all curved tyne bars - John Deere, Morris and Flexi-Coil.

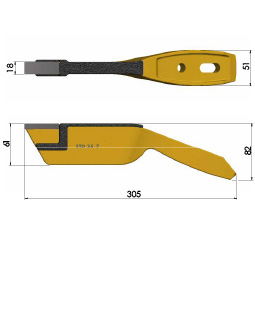

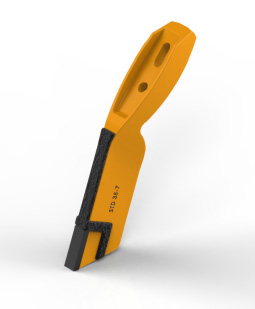

STD RATTLE ON POINT
STD357 DIMENSIONS MAIN FEATURES
STD357
product_std-rattle-on-point_STD357 product_std-rattle-on-point_STD357(dimensions) The combination of 35° entry angle and tapered mount results in a more precise throw of soil in the use of chemicals such as triflurilan / boxer gold.
  • Unrivalled trash clearance with its recessed bolt holes and unique chamfer on top to prevent snagging.
  • 550 and 350 lbs hole configuration.
  • 35° entry angle
  • 10 x 16 x 50 mm recessed tungsten carbide tile, backed up with overlay tungsten.
  • Fast replacement (can use rattle gun)
  • Fits all curved tyne bars (green points) - John Deere, Morris and Flexi-Coil
product_std-rattle-on-point_STD357 product_std-rattle-on-point_STD357(dimensions)
The combination of 35° entry angle and tapered mount results in a more precise throw of soil in the use of chemicals such as triflurilan / boxer gold.
  • Unrivalled trash clearance with its recessed bolt holes and unique chamfer on top to prevent snagging.
  • 550 and 350 lbs hole configuration.
  • 35° entry angle
  • 10 x 16 x 50 mm recessed tungsten carbide tile, backed up with overlay tungsten.
  • Fast replacement (can use rattle gun)
  • Fits all curved tyne bars (green points) - John Deere, Morris and Flexi-Coil

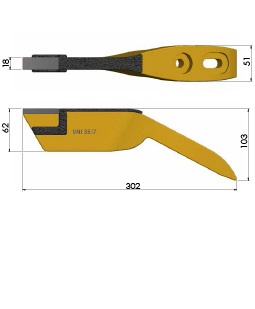

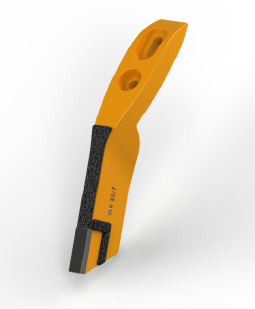

UNI RATTLE ON POINT
UNI 357 /6 DIMENSIONS MAIN FEATURES
UNI 357 /6
product_uni-rattle-on-point_UNI357 product_uni-rattle-on-point_UNI357(dimensions) The combination of 35° entry angle and tapered mount results in a more precise throw of soil in the use of chemicals such as Triflurilan / Boxer Gold.
  • Unrivalled trash clearance with its recessed bolt holes and unique chamfer on top to prevent snagging.
  • 550 and 350 lbs hole configuration.
  • 35 ° entry angle
  • 10 x 16 x 50 mm recessed tungsten carbide tile, backed up with overlay tungsten.
  • Fast replacement (can use rattle gun)
  • Fits all flat tyne bars Borgault, Gason and Horwood Bagshaw
Also comes as 356 with 275mm lengh.
product_uni-rattle-on-point_UNI357 product_uni-rattle-on-point_UNI357(dimensions)
The combination of 35° entry angle and tapered mount results in a more precise throw of soil in the use of chemicals such as Triflurilan / Boxer Gold.
  • Unrivalled trash clearance with its recessed bolt holes and unique chamfer on top to prevent snagging.
  • 550 and 350 lbs hole configuration.
  • 35 ° entry angle
  • 10 x 16 x 50 mm recessed tungsten carbide tile, backed up with overlay tungsten.
  • Fast replacement (can use rattle gun)
  • Fits all flat tyne bars Borgault, Gason and Horwood Bagshaw
Also comes as 356 with 275mm lengh.

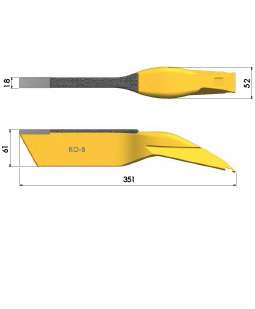

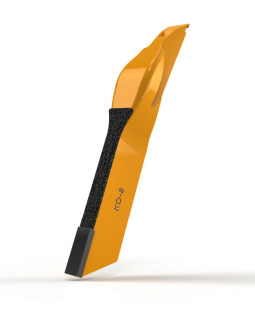

KNOCK ON POINT
KO 8 DIMENSIONS MAIN FEATURES
KO 8
product_knock-on-point_KO8 product_knock-on-point_KO8(dimensions) The KnockON point is aimed at the farmer that wants a fast way of replacing their points. It is as simple as sliding the point into the adapter and inserting a safety pin to prevent the point being dislodged when the tyne recoils abruptly.
  • Unrivalled trash clearance with its smooth lines and unique chamfer on top to prevent snagging.
  • 45 degree entry angle for easier pull in tough conditions.
  • 8 x 18 x 50 mm tungsten carbide tile, backed up with overlay tungsten.
  • Fast replacement (pull pin knock out and slide new point in).
  • Fits all curved tyne bars - John Deere, Morris and Flexi-Coil.
product_knock-on-point_KO8 product_knock-on-point_KO8(dimensions)
The KnockON point is aimed at the farmer that wants a fast way of replacing their points. It is as simple as sliding the point into the adapter and inserting a safety pin to prevent the point being dislodged when the tyne recoils abruptly.
  • Unrivalled trash clearance with its smooth lines and unique chamfer on top to prevent snagging.
  • 45 degree entry angle for easier pull in tough conditions.
  • 8 x 18 x 50 mm tungsten carbide tile, backed up with overlay tungsten.
  • Fast replacement (pull pin knock out and slide new point in).
  • Fits all curved tyne bars - John Deere, Morris and Flexi-Coil.

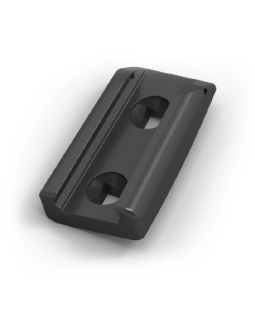

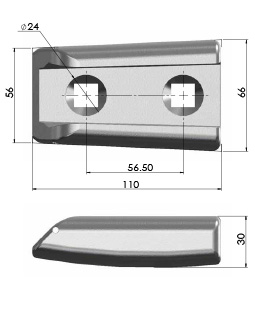

KNOCK-ON MOUNT
KOM350/550 DIMENSIONS MAIN FEATURES
KOM350/550
product_knock-on-mount_KOM350-550 product_knock-on-mount_KOM350-550(dimensions) The KOM is the mounting unit for the KO 8 to suit 350 lbs (or 550 lbs) break out hole configuration.
product_knock-on-mount_KOM350-550 product_knock-on-mount_KOM350-550(dimensions)
The KOM is the mounting unit for the KO 8 to suit 350 lbs (or 550 lbs) break out hole configuration.

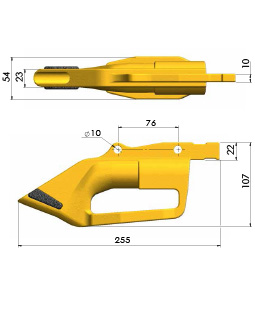

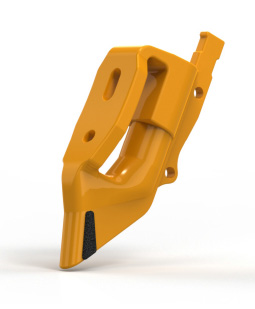

UNI FERT ADAPTER
ADP UNI DIMENSIONS MAIN FEATURES
ADP UNI
product_uni-fe-ser-adapter_ADP-UNI product_uni-fe-ser-adapter_ADP-UNI(dimensions) The Stiletto adapters are designed to hold the sowing wing and place the fertiliser. Each of the adapters have been engineered to maintain the wing level as it travels under the ground depending on the bar it is set up on. Designed for use with flat tyne bars (Borgault, Gason and Horwood Bagshaw).
product_uni-fe-ser-adapter_ADP-UNI product_uni-fe-ser-adapter_ADP-UNI(dimensions)
The Stiletto adapters are designed to hold the sowing wing and place the fertiliser. Each of the adapters have been engineered to maintain the wing level as it travels under the ground depending on the bar it is set up on. Designed for use with flat tyne bars (Borgault, Gason and Horwood Bagshaw).

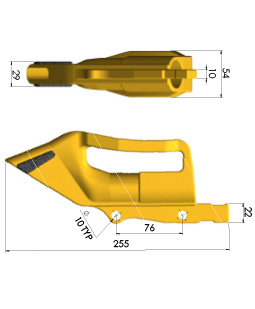

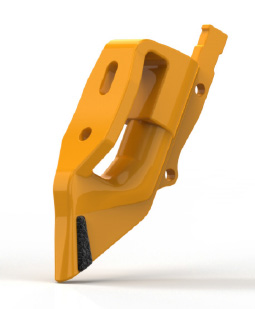

STD FERT ADAPTER
ADP FC DIMENSIONS MAIN FEATURES
ADP FC
product_std-fe-ser-adapter_ADP-FC product_std-fe-ser-adapter_ADP-FC(dimensions) The Stiletto adapters are designed to hold the sowing wing and place the fertiliser. Each of the adapters have been engineered to maintain the wing level as it travels under the ground depending on the bar it is set up on. Designed for use with curved tyne bars (John Deere 1830, Morris and Flexi-Coil).
product_std-fe-ser-adapter_ADP-FC product_std-fe-ser-adapter_ADP-FC(dimensions)
The Stiletto adapters are designed to hold the sowing wing and place the fertiliser. Each of the adapters have been engineered to maintain the wing level as it travels under the ground depending on the bar it is set up on. Designed for use with curved tyne bars (John Deere 1830, Morris and Flexi-Coil).

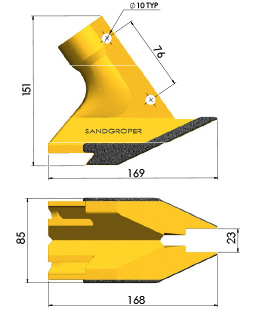

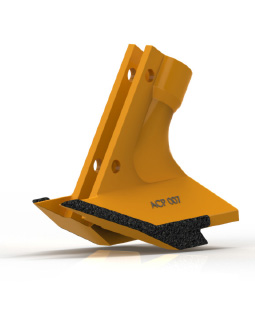

SEEDING WING
SANDGROPER 3 DIMENSIONS MAIN FEATURES
SANDGROPER 3
product_seeding-wing_sandgroper3 product_seeding-wing_sandgroper3(dimensions) Designed for non-wetting soils ranging up to medium to heavy clay. The sloped leading edge of the wing closes the slot left by the point and creates a firm bed for the seed to be placed on. The extended bridge across the back of the wing reduces seed bounce, keeping the seed split at 3 inches wide. This makes it the benchmark in wing seeding systems. Used in conjunction with the fertilizer adapter it can also be used in a single shoot system to place seed and fertiliser together. Suitable for sandy soils.
product_seeding-wing_sandgroper3 product_seeding-wing_sandgroper3(dimensions)
Designed for non-wetting soils ranging up to medium to heavy clay. The sloped leading edge of the wing closes the slot left by the point and creates a firm bed for the seed to be placed on. The extended bridge across the back of the wing reduces seed bounce, keeping the seed split at 3 inches wide. This makes it the benchmark in wing seeding systems. Used in conjunction with the fertilizer adapter it can also be used in a single shoot system to place seed and fertiliser together. Suitable for sandy soils.

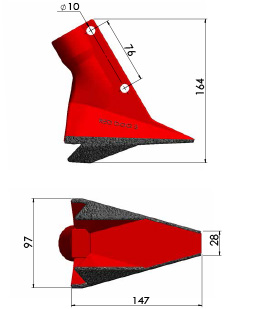

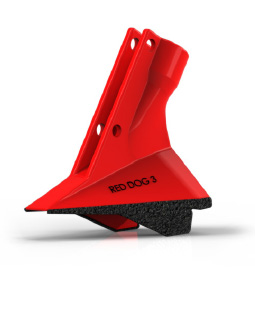

REDDOG 3 DIMENSIONS MAIN FEATURES
REDDOG 3
product_seeding-wing_reddog3 product_seeding-wing_reddog3(dimensions) Designed for use in heavy clay. The flatter underside of the wing allows better flow of clay soil while in conjunction with bedformers it creates a firm bed for seed to be placed and split at 3 inches wide whilst still effectively closing the slot made by the point. Used in conjunction with the fertilizer adapter. Can also be used in single shoot system to place seed and fertiliser together. Suitable for clay soils.
product_seeding-wing_reddog3 product_seeding-wing_reddog3(dimensions)
Designed for use in heavy clay. The flatter underside of the wing allows better flow of clay soil while in conjunction with bedformers it creates a firm bed for seed to be placed and split at 3 inches wide whilst still effectively closing the slot made by the point. Used in conjunction with the fertilizer adapter. Can also be used in single shoot system to place seed and fertiliser together. Suitable for clay soils.

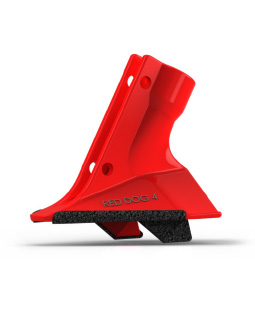

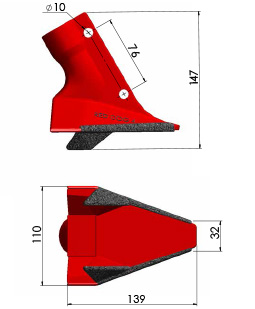

REDDOG 4 DIMENSIONS MAIN FEATURES
REDDOG 4
product_seeding-wing_reddog4 product_seeding-wing_reddog4(dimensions) Designed for use in heavy clay. The flatter underside of the wing allows better flow of clay soil while in conjunction with bedformers it creates a firm bed for seed to be placed and split at 4 inches wide, whilst still effectively closing the slot made by the point. Used in conjunction with the fertilizer adapter. Can also be used in single shoot system to place seed and fertiliser together. Suitable for clay soils.
product_seeding-wing_reddog4 product_seeding-wing_reddog4(dimensions)
Designed for use in heavy clay. The flatter underside of the wing allows better flow of clay soil while in conjunction with bedformers it creates a firm bed for seed to be placed and split at 4 inches wide, whilst still effectively closing the slot made by the point. Used in conjunction with the fertilizer adapter. Can also be used in single shoot system to place seed and fertiliser together. Suitable for clay soils.

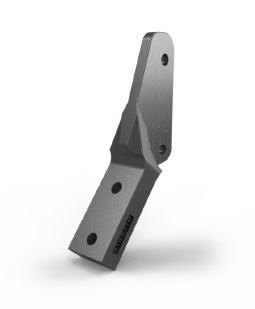

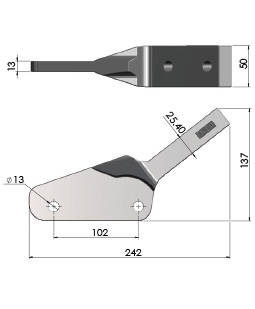

DRILL MOUND ADAPTER
MCDA DIMENSIONS MAIN FEATURES
MCDA
product_drill-mound-adapter_MCDA product_drill-mound-adapter_MCDA(dimensions) The MCDA allows you to fit the Stiletto Seeding System to the Morris Contour drill.
product_drill-mound-adapter_MCDA product_drill-mound-adapter_MCDA(dimensions)
The MCDA allows you to fit the Stiletto Seeding System to the Morris Contour drill.

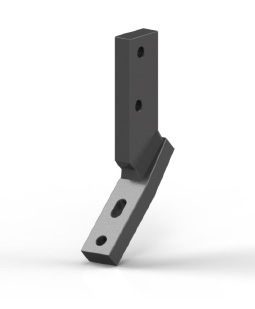

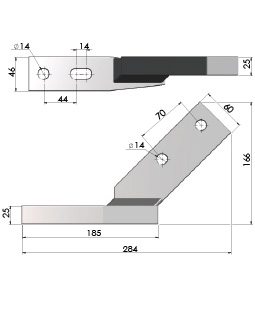

SHANK MOUNT ADAPTER
MCSA DIMENSIONS MAIN FEATURES
MCSA
product_shank-mount-adapter_MCSA product_shank-mount-adapter_MCSA(dimensions) The MCSA allows you to fit the Stiletto Seeding System to the Concord Air Hoe Drill.
product_shank-mount-adapter_MCSA product_shank-mount-adapter_MCSA(dimensions)
The MCSA allows you to fit the Stiletto Seeding System to the Concord Air Hoe Drill.

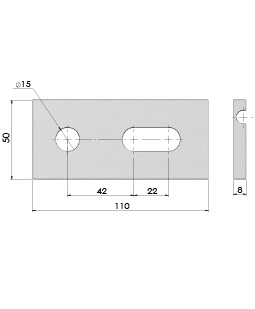

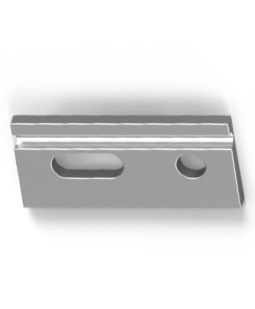

LIQUID NITRO PLATE
SPACER DIMENSIONS MAIN FEATURES
SPACER
product_liquid-nitro-plate_spacer product_liquid-nitro-plate_spacer(dimensions) Liquid Nitrogen plate fits in front of the fertiliser adapter allowing the farmer to band flexi-N and other liquid products behind the knife point.
product_liquid-nitro-plate_spacer product_liquid-nitro-plate_spacer(dimensions)
Liquid Nitrogen plate fits in front of the fertiliser adapter allowing the farmer to band flexi-N and other liquid products behind the knife point.

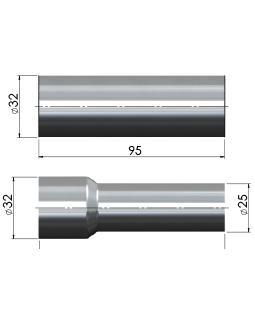

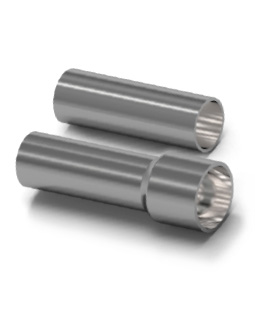

HOSE ADAPTER
HA-25/HA-32 DIMENSIONS MAIN FEATURES
HA-25/HA-32
product_hose-adapter_HA25-HA32 product_hose-adapter_HA25-HA32(dimensions) Adapter to Fit 25mm (or 32mm) ID hose.
product_hose-adapter_HA25-HA32 product_hose-adapter_HA25-HA32(dimensions)
Adapter to Fit 25mm (or 32mm) ID hose.
